Rais Caro SST

Rais Caro SST Woodburner

Rais Caro SST woodburner has a classic and pure design. The large amount of soapstone stores heat and ensures an even, comfortable room temperature for many hours. The large curved glass door ensures that you get even more enjoyment from the fire no matter where you are in the room. You are able to adapt the Rais Caro SST woodburner to your home and your style – choose for yourself the colour, side glass, handle and much more.

TECHNICAL DATA
Combustion chamber inner dimensions (W-D-H) in mm 352-292-446 mm
Flue outlet (diameter) 150 mm
Distance from floor to the centre of the AirSystem connection 125 mm
Distance from floor to the centre of the flue outlet, top 1070 mm
Distance from floor to the centre of the flue outlet, back 986 mm
Rated output 5,6

Output
Output (min-max) in kWh 3-7 kW
Heating (at -20°C) in m2 45 – 105 m2
Efficiency in % 80

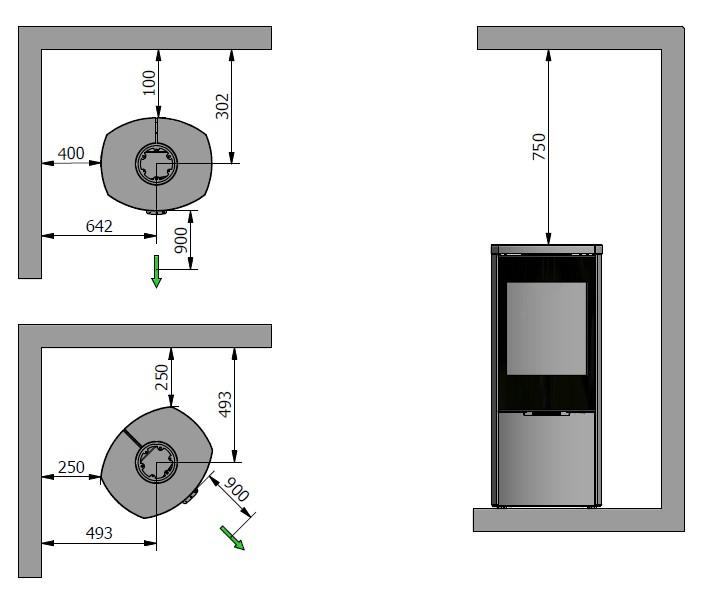

Distance to flammable material
To side wall in mm 400
To back wall in mm 100
To the ceiling in mm 750
Weight in kg 161
– of which soapstone 78,5 kg
Steel door with glass : Standard
Glass door : Accessory
Handle with different design  : Accessory
Flue outlet, top and back  : Standard
Riddling grate and ash tray  : Accessory
AirSystem: Standard
CleverAir : Accessory
Swivel base with rotating flue collar : Accessory

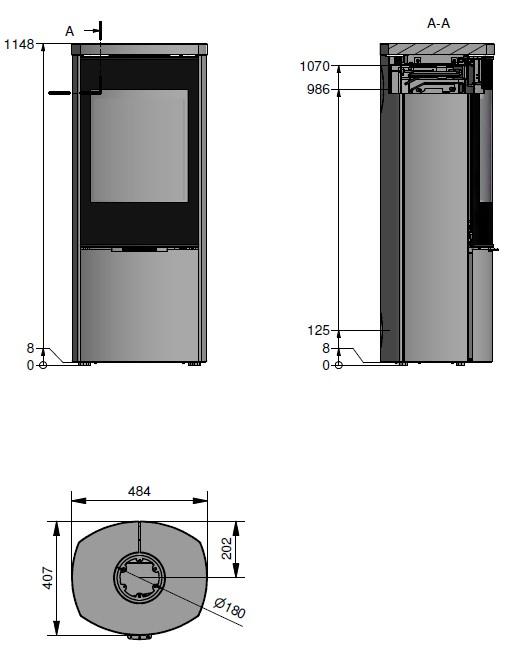

  • DRAWINGS

    Caro SST måltegning 1Caro SST måltegning 2
