Stovax County 8 Woodburner

The Stovax County 8 woodburner is a stove that brings presence and impressive flame visuals in equal measure. With an impressive 8kW heat output, the County 8 is a large format stove perfect with enough heat to bring warmth and allure to larger rooms. With a bigger size of stove comes a stunning view of the flames thanks to the wide viewing window, kept clear by powerful Airwash jets. County 8 wood burning stoves are designed to suit both traditional and modern interiors, with a charming and timeless exterior. All County models feature a responsive slide control to adjust airflow for easy heat management, and Cleanburn airflow systems help to minimise emissions. The County 8 is available as a dedicated wood burning stove, which has achieved the Ecodesign PLu mark.

KEY FACTS – Stovax County 8 Woodburner
Ecodesign Plus
High efficiency up to 77.8%
Energy Efficiency Class A
Dedicated Woodburner
Approved for Smoke Control Areas
Cleanburn
Airwash
Nominal heat output and range 8.3kW (4 – 11kW)
Maximum log length 13″ (330mm)
Room vent not normally required
Flue outlet 5″ top or rear
Integral Heat Shields
Matt Black Finish

COUNTY 8 INFORMATION
A : 603mm
A1 (Glass Viewing Area) : 376mm
B : 621mm
(Glass Viewing Area) : 263mm
C : 396mm
D : 516mm
E : 667mm
F : 697mm
G : 150mm
H : 135mm
I : 204mm
J : 165mm
K : 162mm

Models included in this range are the Stovax County 3, the Stovax County 5, The Stovax County 5 wide, and the Stovax County 8.

Rais Juno L Woodburner

The Rais Juno L woodburner is a state-of-the-art and almost sculptural wood-burning stove, where the beautifully rounded, light natural stones stand in striking contrast to the fire and the shiny glass and steel. The large glass pane of the Rais Juno L Woodburner gives you an optimal view of the fire, where the flames are truly in focus.

TECHNICAL DATA
Outer frame dimensions (W-D-H) in mm 150 mm
Distance from floor to the centre of the AirSystem connection 121 mm
Distance from floor to the centre of the flue outlet, top 1103 mm
Distance from floor to the centre of the flue outlet, back 1027 mm
Rated output 5,6 kW
Rated Output (kW) 4,8 kW

Output
Output (min-max) in kWh 3-7 kW
Efficiency in % 45 – 105 m2

Distance to flammable material
To side wall in mm 500 mm
To back wall in mm 75 mm

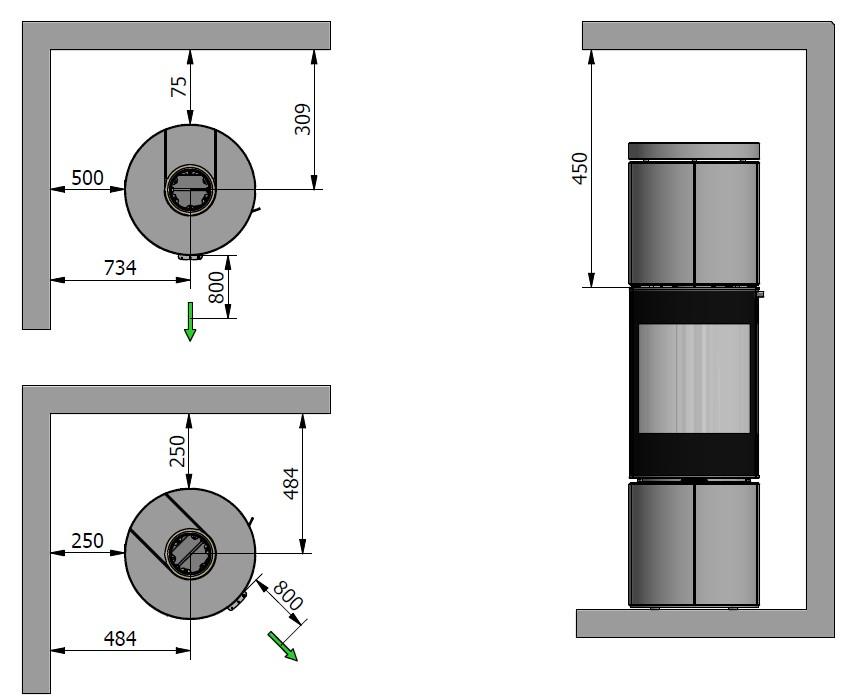

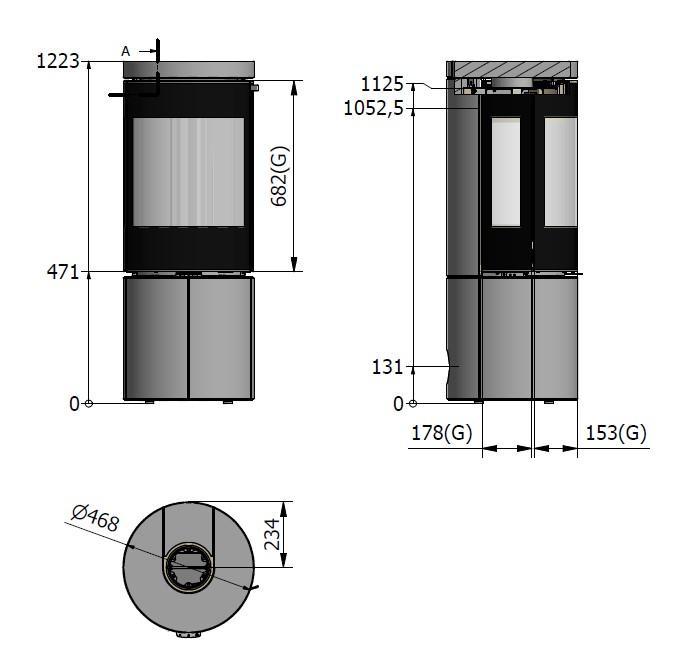

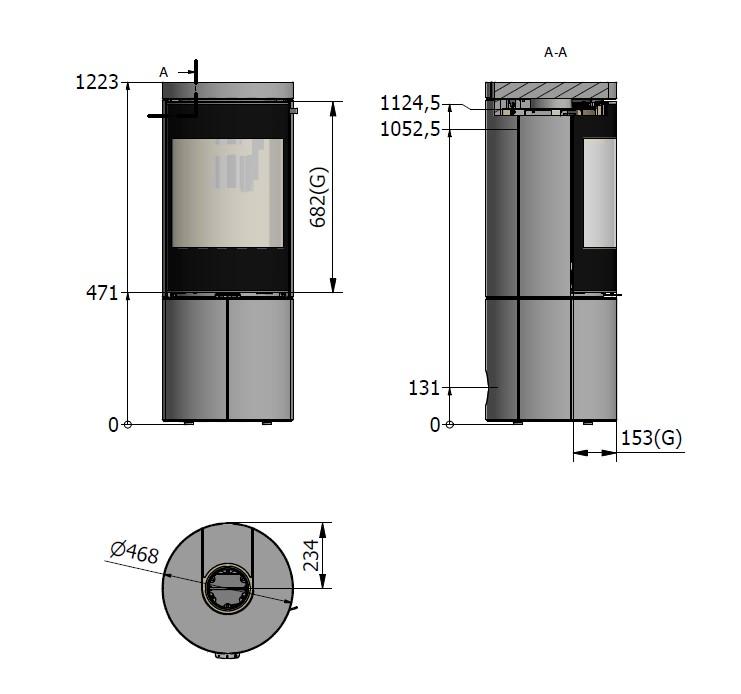

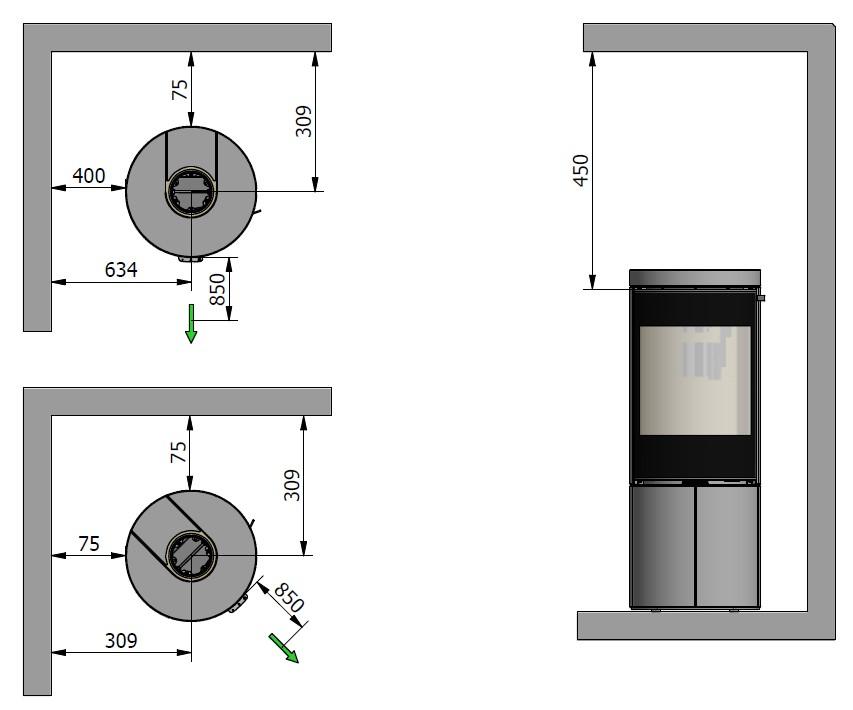

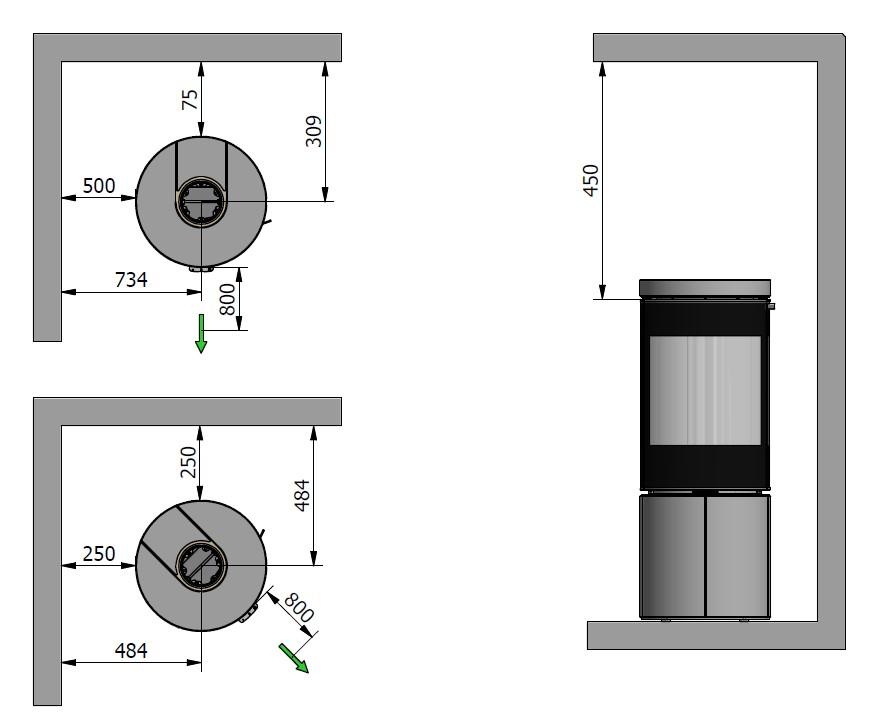

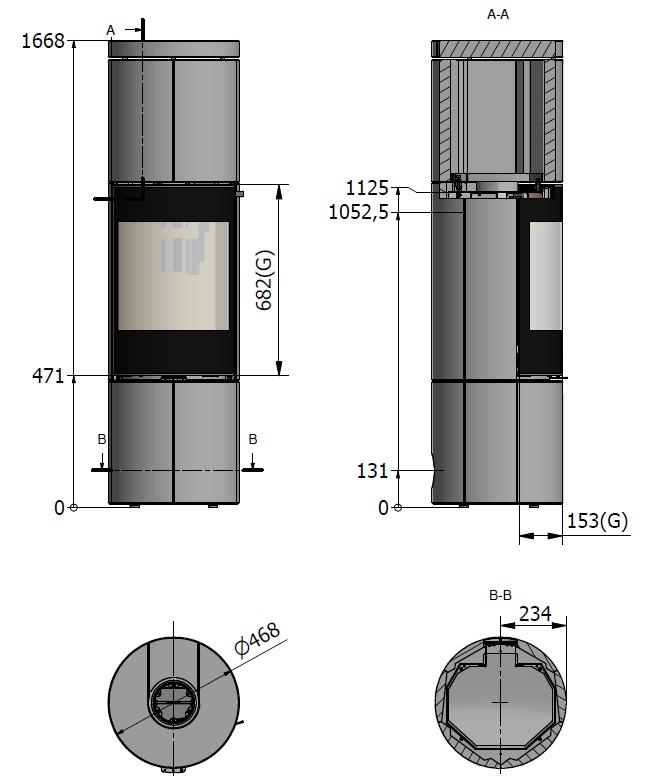

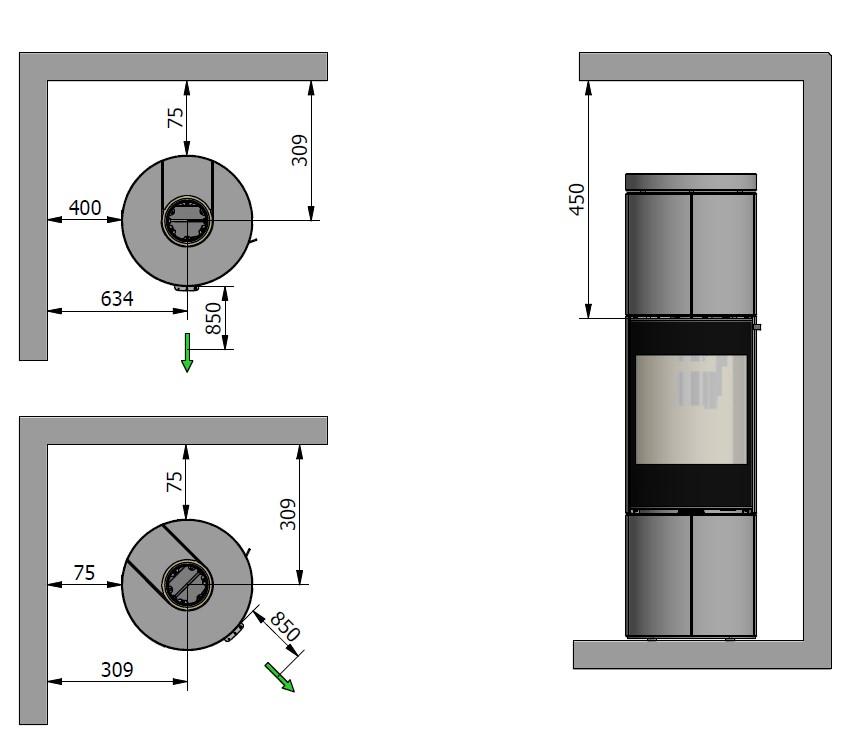

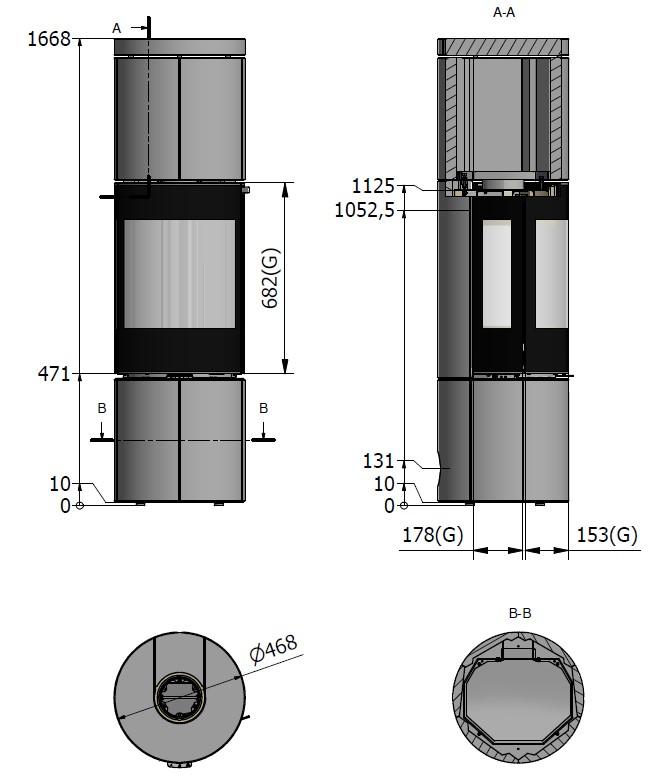

DRAWINGS

Juno L 120 with side glass

Juno L 120 without side glass

Juno L 160 with side glass

Juno L 160 without side glass

Chesneys Clean Burn XL

The Chesneys Clean Burn XL is a hugely powerful and eco-friendly wood burning Garden Heater, the Clean Burn XL has been created to offer even greater heat output than the Clean Burn, a pleasing landscape format and the flexibility to be positioned to suit your outside space. Modular in design, and manufactured in the UK, the burner offers a 110cm wide fire chamber with a panoramic glass window for a spectacular view of the fire, while the optional chunky wood store provides a stylish base and ample storage for logs.

The Chesneys Clean Burn XL is ideal as a standalone or positioned on a wall or raised area, it’s is also easily incorporated into a bespoke garden build, at a height to suit you.

Additional Information
Unit comes complete with flue.
Additionally the product comes with the following:
•Pair of stove gloves.

The Chesneys Clean Burn XL produces a huge amount of heat from its prodigious chamber. Doors at both ends and simple, responsive control levers and removable ash trays make cleaning and loading easy. Despite its impressive heat output, the XL boasts the same smoke limiting technology as its smaller brother, ensuring that emissions are kept to the minimum, even when going full blast.

The XL will keep you and your friends and family warm effortlessly and make that ‘room outside’ into a ‘living room’, all year round.

Product Details
COLOUR – Black
OVERALL SIZE – Burner Only – 1100 (W), 780 (including flue collar) (H), 400mm (D)
OVERALL SIZE – with log store – 1100mm (W), 1083 (including flue collar) (H), 400mm (D)
WEIGHT – Burner only -132kg
WEIGHT – log store -47kg

Charnwood Aire 3

The Charnwood Aire 3 is a revolutionary new wood burning stove.

This British made stove is an exciting addition to our Aire collection. With an output of 3 kW, the Aire 3 is perfect for smaller spaces. Not just for conventional houses – but for cabins, yurts and tiny homes.

With an efficiency of around 84%, it has all the features of both the Aire 5 and Aire 7; large ceramic glass window, single air control for easy use, cool-to-touch handle for safe reloading but perhaps best of all it meets all the criteria set for Ecodesign 2022.

The Charnwood Aire 3 will be available from September 2020

Operation:
The Aire 3 is incredibly easy to operate (one simple push/pull control) and incorporates ground breaking technology ensuring you get the very best efficiency from the fuel burnt. It features a sliding ash bed for clean ash removal and a cool-to-touch handle for easy reloading. As one of the cleanest, greenest stoves on the market today the Aire 3 sets the benchmark for clean burn stove technology.

Materials: Cast Iron, sheet steel, firebrick lining, ceramic glass
Output: 3 kW
Dimensions:
Low Stand: Height: 500 Width: 384 Depth: 344mm
Store Stand: Height: 610 Width: 384 Depth: 344mm
Colour options: Black, Brown, Green, Blue, Gunmetal, Pewter, Almond, Bronze

Jøtul Terrazza XL -Outside Fireplace

The Jøtul Terrazza XL is the larger model in the Jøtul Terrazza range. The Terrazza ﬁreplaces are made of Corten steel which gives a rustic, rusty surface after a short time. This also protects the steel so that the ﬁreplaces can stand out all year round. The Jøtul Terrazza XL has a large opening with good access from the sides. In addition, the Terrazza provides a raised access to the fire.

In summary;
Raised access to the ﬁre
Leave outside all year round
Can be used for bonﬁres or barbecues

Size XL
Height: 1,600 mm
Width: 560 mm
Depth: 560 mm

The Jotul Terrazza is also available.

Included in the Jotul Outdoor Fireplace Range are
The Froya, The Loke, The Terrazza and The Terrazza XL.

Rais Nexo 185 Wood Burning Stove

The Rais Nexo 185 Wood burning stove has a streamlined and elegant design that is both discreet and head-turning. Nothing breaks the clean lines, and the stove is therefore the perfect match for modern, minimalistic architecture. The large panes ensure a fantastic view of the flames, so you can enjoy the fire no matter where you are in the room. You can choose from six different colours, side glass, handles and much more – and thereby adapt the stove to the style of your choice.

Comes with a manual damper or with CleverAir. CleverAir controls the air intake automatically, so all you have to do is add firewood.

The following Rais Nexo Models are also available:
Rais Nexo 100, Rais Nexo 120, Rais Nexo 140, Rais Nexo 160 and Rais Nexo 185

The Rais Nexo 185 Wood Burning Stove model also comes as a gas fireplace.

Dimensions (W-D-H)
External dimensions (W-D-H) in mm: 446-398-1860 mm
Combustion chamber inner dimensions (W-D-H) in mm: 344-253-510 mm
Flue outlet (diameter):150 mm
Distance from centre to the back edge of the top plate in mm: 198 mm
The distance from floor to the centre of the AirSystem connection: 115 mm
Distance from floor to the centre of the flue outlet, top: 1193 mm
RATED OUTPUT (KW):5 kW

Output
OUTPUT (MIN-MAX):3-7 kW
Heating (at -20°C) in m2:45-105 m2
Weight in kg: 191

Distance to flammable material
To side wall in mm :350/450 mm
Back wall in mm: 100 mm
To furniture :900 mm

Specifications
Steel door with glass: STANDARD
Glass door: ACCESSORY
Side glass: ACCESSORY
Handle with different design: ACCESSORY
Flue outlet, top and back: STANDARD
Riddling grate and ash tray: STANDARD
AirSystem: ACCESSORY
CleverAir: ACCESSORY
Swivel base with rotating flue collar: ACCESSORY
Top plate, stainless steel: ACCESSORY

Rais Nexo 120 Wood Burning Stove

The Eco Design Rais Nexo 120 has a square and clean design that is both discrete and eye-catching. The large glass panes give you a fantastic view of the fire, where the flames are truly in focus. Absolutely clean lines. Made for the modern home with stylistically pure architecture. Your individual choice determines the colour, side glass, top plate, handle and much more. Therefore, you get a stove that is exactly the way you want it.

This stove comes with a manual damper or with CleverAir, which controls the air intake. All you have to do is add firewood.

The following Rais Nexo Models are also available:
Rais Nexo 100, Rais Nexo 120, Rais Nexo 140, Rais Nexo 160 and Rais Nexo 185

The Rais Nexo 120 model also comes as a gas fireplace.

Dimensions (W-D-H)
External dimensions (W-D-H) in mm:446-398-1235 mm
Combustion chamber inner dimensions (W-D-H) in mm: 344-253-510 mm
Flue outlet (diameter) : 150 mm
Distance from centre to the back edge of the top plate in mm: 198 mm
The distance from floor to the centre of the AirSystem connection:115 mm
Distance from floor to the centre of the flue outlet, top: 1193 mm
And the distance from floor to the centre of the flue outlet, back:1110 mm
RATED OUTPUT (KW): 5 kW

Output
OUTPUT (MIN-MAX): 3-7 kW
Heating (at -20°C) in m2: 45-105 m2
Weight in kg:140 kg

Distance to flammable material
To side wall in mm: 350/450 mm
Back wall in mm: 100 mm
To furniture: 900 mm

Rais 600-1 Wood Burning Inset

The Eco Design RAIS 600-1 has a unique expression that sets it apart from others and exudes its own unique character. Enjoy the fire through large glass panes that create an illusion of an open fireplace. The fireplace insert also comes with glass on two or three sides, steel or glass doors, and right or left-facing models built into a corner or perhaps an existing fireplace.

The Eco Design RAIS 600-1 Connects to AirSystem through the bottom or back wall.

This range includes the Rais 600/1, The Rais 600/2 and the Rais 600/3

Dimensions (W-D-H)
External dimensions (W-D-H) in mm: 720 – 402 – 610
Combustion chamber inner dimensions (W-D-H) in mm: 544 – 256 – 165
Installation dimensions (W-D-H) in mm: 730 — 615
Outer frame dimensions (W-D-H) in mm: 758 — 627
Flue outlet (diameter):150

Output
Heating (at -20°C) in m2: 120
Efficiency in %: 76
Weight in kg: 99

Distance to flammable material
To side wall in mm: 350
The ceiling in mm: 1000
To the floor in mm: 300
Furniture: 1100
